Getting started with R Studio

Author

Mahesh Divakaran & Dr. Jayadevan Sreedharan

Installing RStudio

Whilst its eminently possible to just use the base installation of R (many people do), we will be using a popular Integrated Development Environment (IDE) called RStudio. RStudio can be thought of as an add-on to R which provides a more user-friendly interface, incorporating the R Console, a script editor and other useful functionality (like R markdown and GitHub integration). You can find more information about [RStudio here][rstudio].

RStudio is freely available for Windows, Mac and Linux operating systems and can be downloaded from the [RStudio site][rstudio-download]. You should select the ‘RStudio Desktop’ version. Note: you must install R before you install RStudio (see previous section for details).



See this [video][install-vid] for step-by-step instructions on how to download and install R and RStudio

Windows and Mac users

For Windows and Mac users you should be presented with the appropriate link for downloading. Click on this link and once downloaded run the installer and follow the instructions. If you don’t see the link then scroll down to the ‘All Installers’ section and choose the link manually.

Linux users

For Linux users scroll down to the ‘All Installers’ section and choose the appropriate link to download the binary for your Linux operating system. RStudio for Ubuntu (and Debian) is available as a *.deb package. The easiest way to install deb files on Ubuntu is by using the gdebi command. If gdebi is not available on your system you can install it by using the following command in the Terminal (you will need root permission to do this)

sudo apt update
sudo apt install gdebi-core

To install the *.deb file navigate to where you downloaded the file and then enter the following command with root permission

sudo gdebi rstudio-xenial-1.2.5XXX-amd64.deb

where ‘-1.2.5XXX’ is the current version for Ubuntu (rstudio-xenial-1.2.5019-amd64.deb at the time of writing). You can then start RStudio from the Console by simply typing

rstudio

or you can create a shortcut on your Desktop for easy startup.

Testing RStudio

Once installed, you can check everything is working by starting up RStudio (you don’t need to start R as well, just RStudio). You should see something like the image below (if you’re on a Windows or Linux computer there may be small cosmetic differences).



RStudio orientation

When you open R studio for the first time you should see the following layout (it might look slightly different on a Windows computer).





The large window (aka pane) on the left is the Console window. The window on the top right is the Environment / History / Connections pane and the bottom right window is the Files / Plots / Packages / Help / Viewer window. We will discuss each of these panes in turn below. You can customise the location of each pane by clicking on the ‘Tools’ menu then selecting Global Options –> Pane Layout. You can resize the panes by clicking and dragging the middle of the window borders in the direction you want. There are a plethora of other ways to [customise][rstudio-cutomise] RStudio.

Console

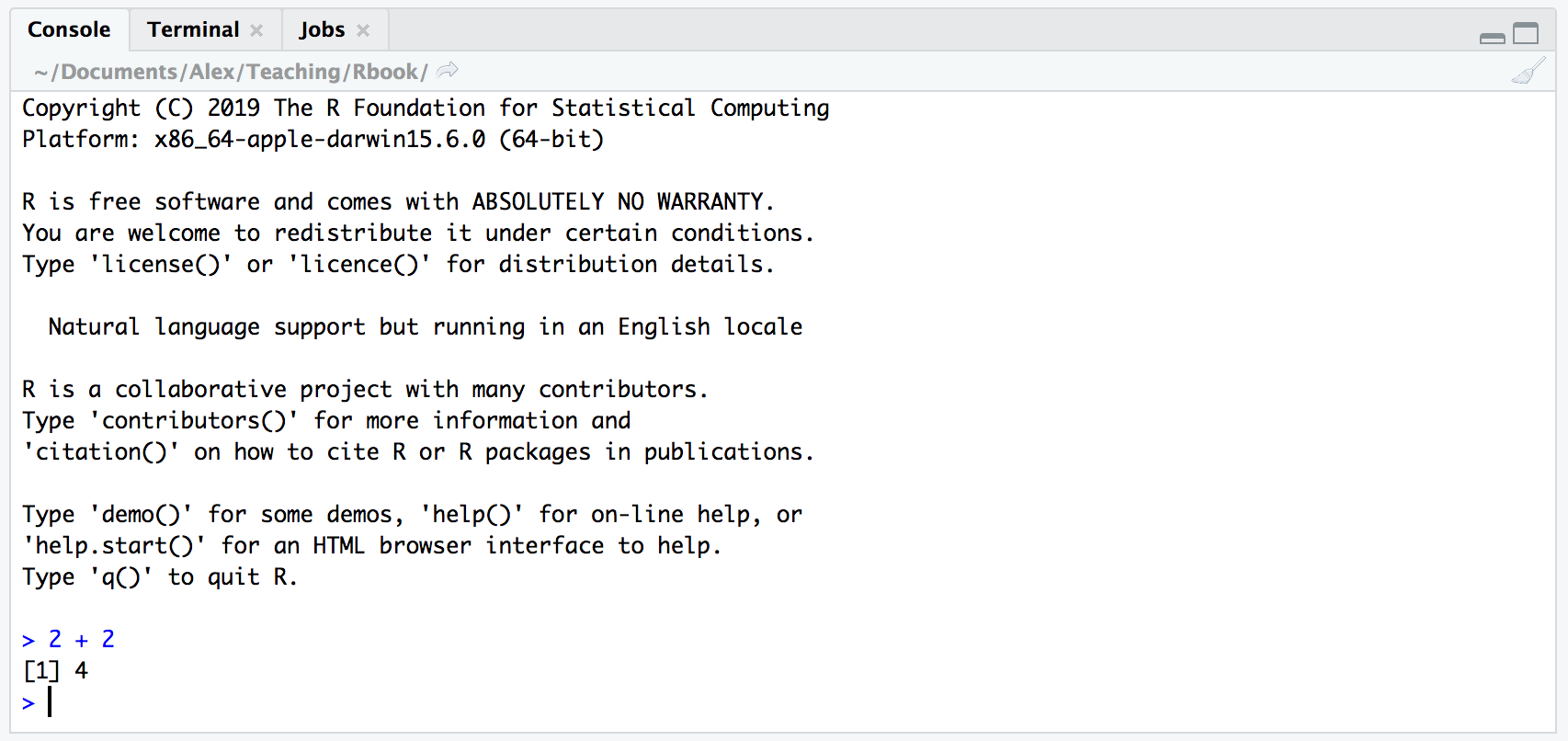

The Console is the workhorse of R. This is where R evaluates all the code you write. You can type R code directly into the Console at the command line prompt, >. For example, if you type 2 + 2 into the Console you should obtain the answer 4 (reassuringly). Don’t worry about the [1] at the start of the line for now.

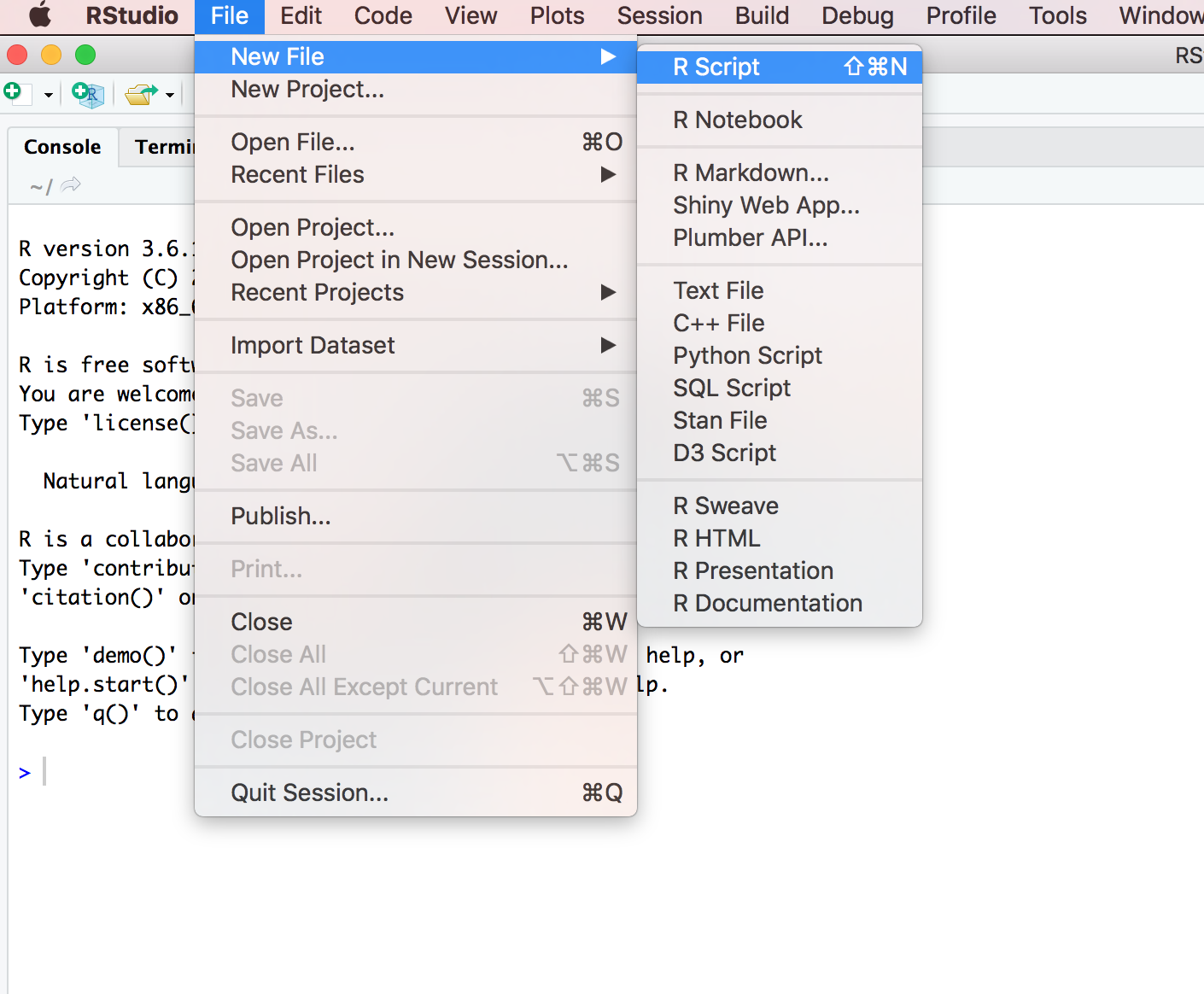

However, once you start writing more R code this becomes rather cumbersome. Instead of typing R code directly into the Console a better approach is to create an R script. An R script is just a plain text file with a .R file extension which contains your lines of R code. These lines of code are then sourced into the R Console line by line. To create a new R script click on the ‘File’ menu then select New File –> R Script.

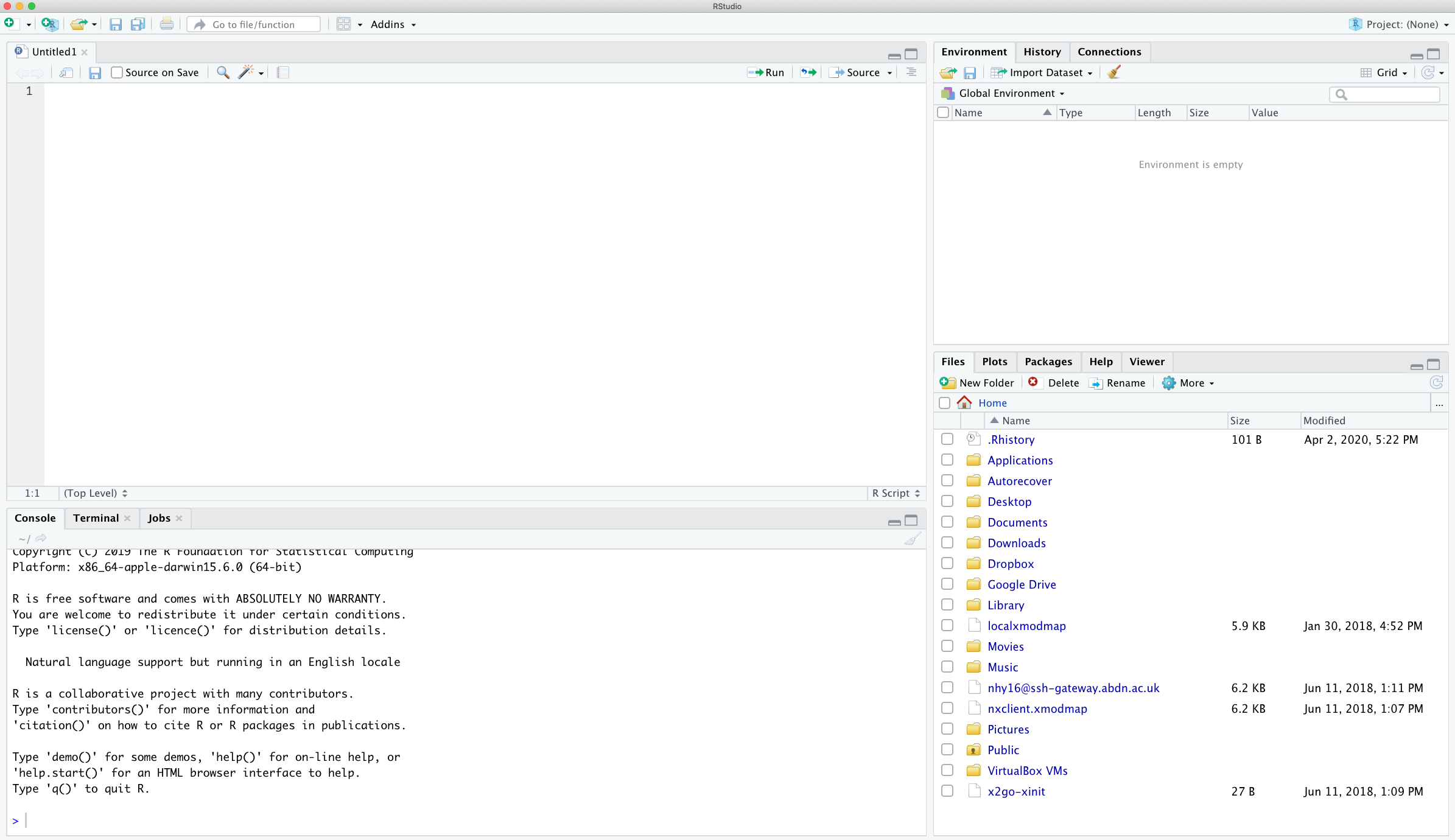

Notice that you have a new window (called the Source pane) in the top left of RStudio and the Console is now in the bottom left position. The new window is a script editor and where you will write your code.

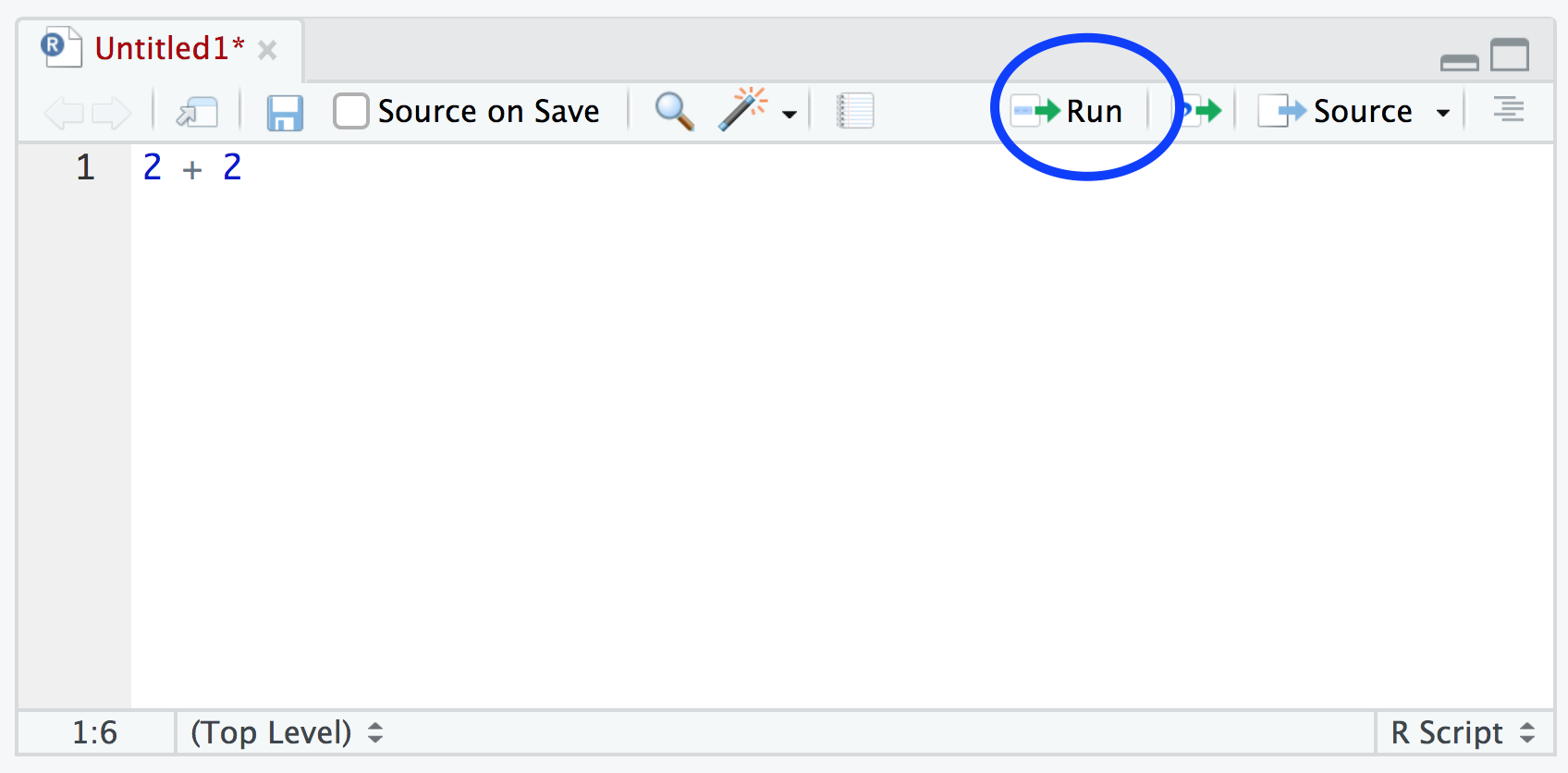

To source your code from your script editor to the Console simply place your cursor on the line of code and then click on the ‘Run’ button in the top right of the script editor pane.





You should see the result in the Console window. If clicking on the ‘Run’ button starts to become tiresome you can use the keyboard shortcut ‘ctrl + enter’ (on Windows and Linux) or ‘cmd + enter’ (on Mac). You can save your R scripts as a .R file by selecting the ‘File’ menu and clicking on save. Notice that the file name in the tab will turn red to remind you that you have unsaved changes. To open your R script in RStudio select the ‘File’ menu and then ‘Open File…’. Finally, its worth noting that although R scripts are saved with a .R extension they are actually just plain text files which can be opened with any text editor.

Environment/History/Connections

The Environment / History / Connections window shows you lots of useful information. You can access each component by clicking on the appropriate tab in the pane.

  • The ‘Environment’ tab displays all the objects you have created in the current (global) environment. These objects can be things like data you have imported or functions you have written. Objects can be displayed as a List or in Grid format by selecting your choice from the drop down button on the top right of the window. If you’re in the Grid format you can remove objects from the environment by placing a tick in the empty box next to the object name and then click on the broom icon. There’s also an ‘Import Dataset’ button which will import data saved in a variety of file formats. However, we would suggest that you don’t use this approach to import your data as it’s not reproducible and therefore not robust (see Chapter 3 for more details).

  • The ‘History’ tab contains a list of all the commands you have entered into the R Console. You can search back through your history for the line of code you have forgotten, send selected code back to the Console or Source window. We usually never use this as we always refer back to our R script.

  • The ‘Connections’ tab allows you to connect to various data sources such as external databases.

Files/Plots/Packages/Help/Viewer

  • The ‘Files’ tab lists all external files and directories in the current working directory on your computer. It works like file explorer (Windows) or Finder (Mac). You can open, copy, rename, move and delete files listed in the window.

  • The ‘Plots’ tab is where all the plots you create in R are displayed (unless you tell R otherwise). You can ‘zoom’ into the plots to make them larger using the magnifying glass button, and scroll back through previously created plots using the arrow buttons. There is also the option of exporting plots to an external file using the ‘Export’ drop down menu. Plots can be exported in various file formats such as jpeg, png, pdf, tiff or copied to the clipboard (although you are probably better off using the appropriate R functions to do this - see Chapter 4 for more details).

  • The ‘Packages’ tab lists all of the packages that you have installed on your computer. You can also install new packages and update existing packages by clicking on the ‘Install’ and ‘Update’ buttons respectively.

  • The ‘Help’ tab displays the R help documentation for any function. We will go over how to view the help files and how to search for help in Chapter 2.

  • The ‘Viewer’ tab displays local web content such as web graphics generated by some packages.

Alternatives to RStudio

Although RStudio is becoming increasingly popular it might not be the best choice for everyone and you certainly don’t have to use it to use R effectively. Rather than using an ‘all in one’ IDE many people choose to use R and a separate script editor to write and execute R code. If you’re not familiar with what a script editor is, you can think of it as a bit like a word processor but specifically designed for writing code. Happily, there are many script editors freely available so feel free to download and experiment until you find one you like. Some script editors are only available for certain operating systems and not all are specific to R. Suggestions for script editors are provided below. Which one you choose is up to you: one of the great things about R is that YOU get to choose how you want to use R.

Advanced text editors

A light yet efficient way to write your R scripts using advanced text editors such as:

  • [Atom][atom] (all operating systems)
  • [BBedit][BBedit] (Mac OS)
  • [gedit][gedit] (Linux; comes with most Linux distributions)
  • [MacVim][macvim] (Mac OS)
  • [Nano][nano] (Linux)
  • [Notepad++][notepad] (Windows)
  • [Sublime Text][sublime] (all operating systems)

Integrated development environments

These environments are more powerful than simple text editors, and are similar to RStudio:

  • [Emacs][emacs] and its extension [Emacs Speaks Statistics][ess] (all operating systems)
  • [RKWard][rkward] (Linux)
  • [Tinn-R][tinn-r] (Windows)
  • [vim][vim] and its extension [NVim-R][nvim-r] (Linux)
